Smok Mag V8 Vape Kit

Coil Compatibility and Performance

The TFV-Mini V2 tank works exclusively with Smok's Mini V2 coil series. It is not backward compatible with older Baby coils, TFV8 coils, or any third-party coils. Always ensure replacement coils are clearly labelled "Mini V2" to avoid fitment issues.

Two coils are included in the kit:

Mini V2 S1 Mesh 0.15Ω

• Wattage Range: 40 – 80W

• Best At: 60 – 70W

• Characteristics: The mesh heating element provides rapid ramp-up, exceptional surface area contact with cotton, and intensely saturated flavour. Ideal for vapers who prioritise taste clarity and dense vapour production at higher wattages.

Mini V2 S2 Quad 0.15Ω

• Wattage Range: 30 – 70W

• Best At: 45 – 60W

• Characteristics: Four separate parallel coils produce a noticeably warmer, fuller mouthfeel than mesh. The vapour is slightly less crisp in flavour separation but offers a more "wet" and substantial sensation. Best for vapers who enjoy a warmer, dessert-style vape.

Both coils are optimised for direct-to-lung (DTL) inhalation. Mouth-to-lung (MTL) users will find the airflow too open, even when fully closed.

Beyond the included S1 and S2 coils, the Mini V2 series includes strip coils, conical designs, and higher-resistance options—all available for separate order through Vaping Supplier.

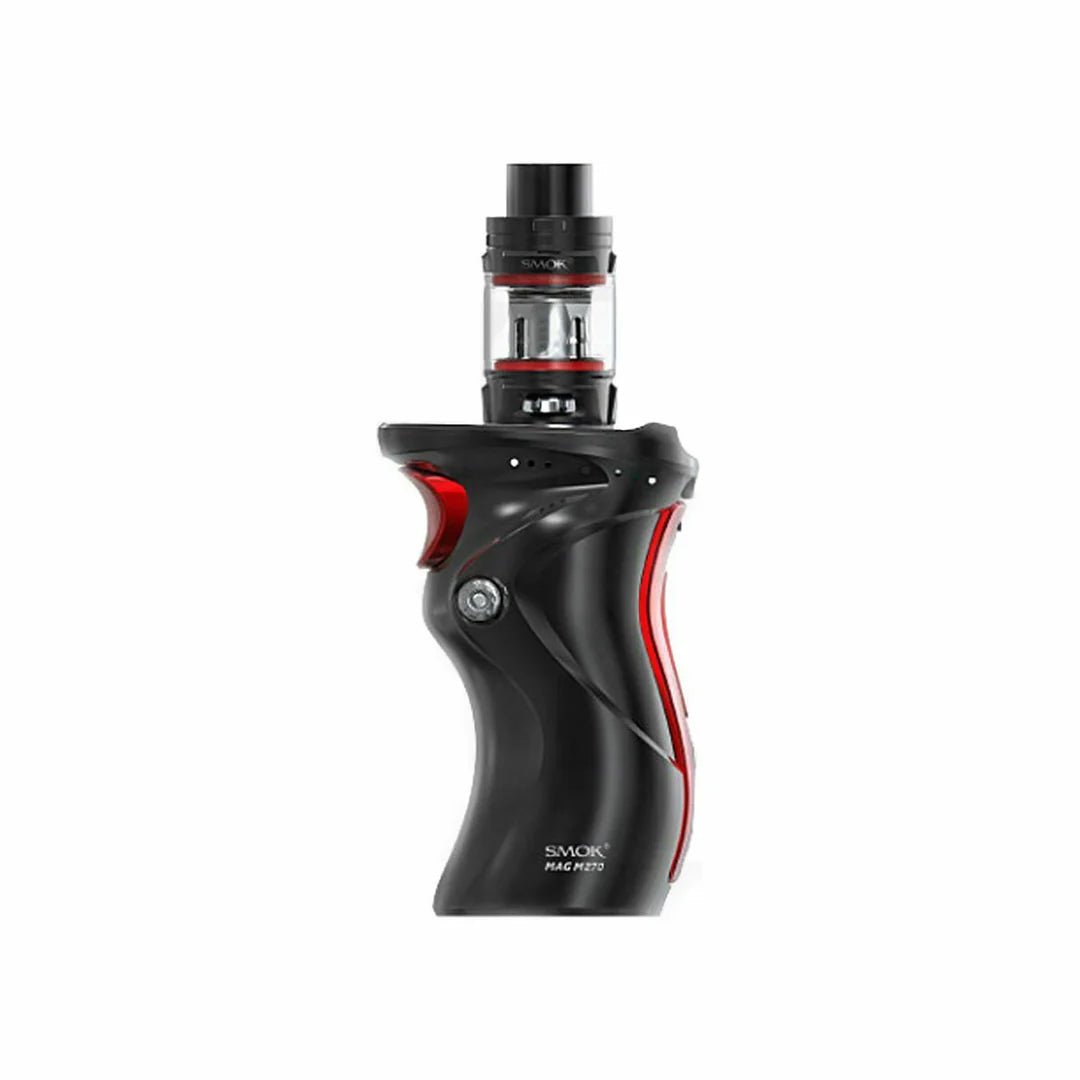

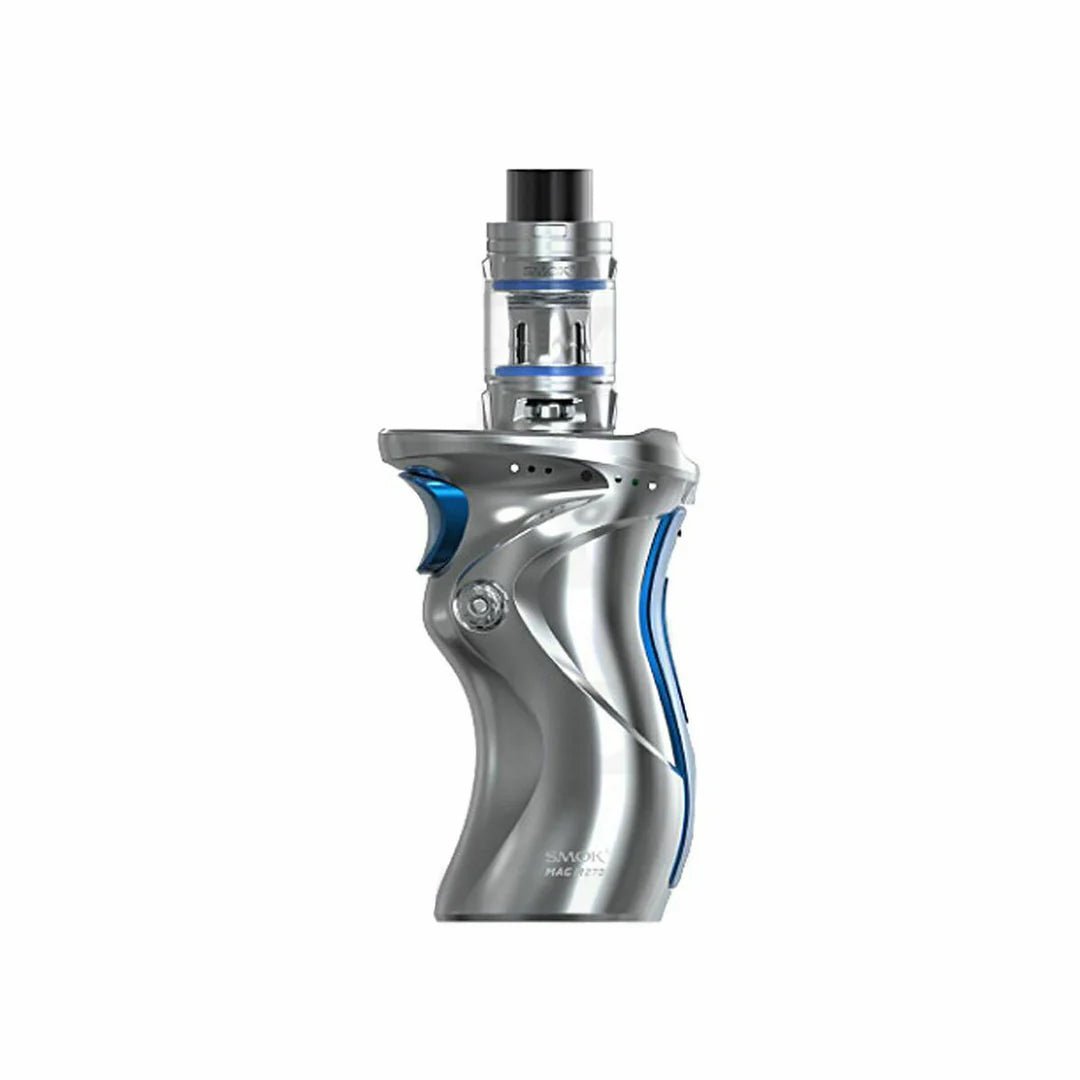

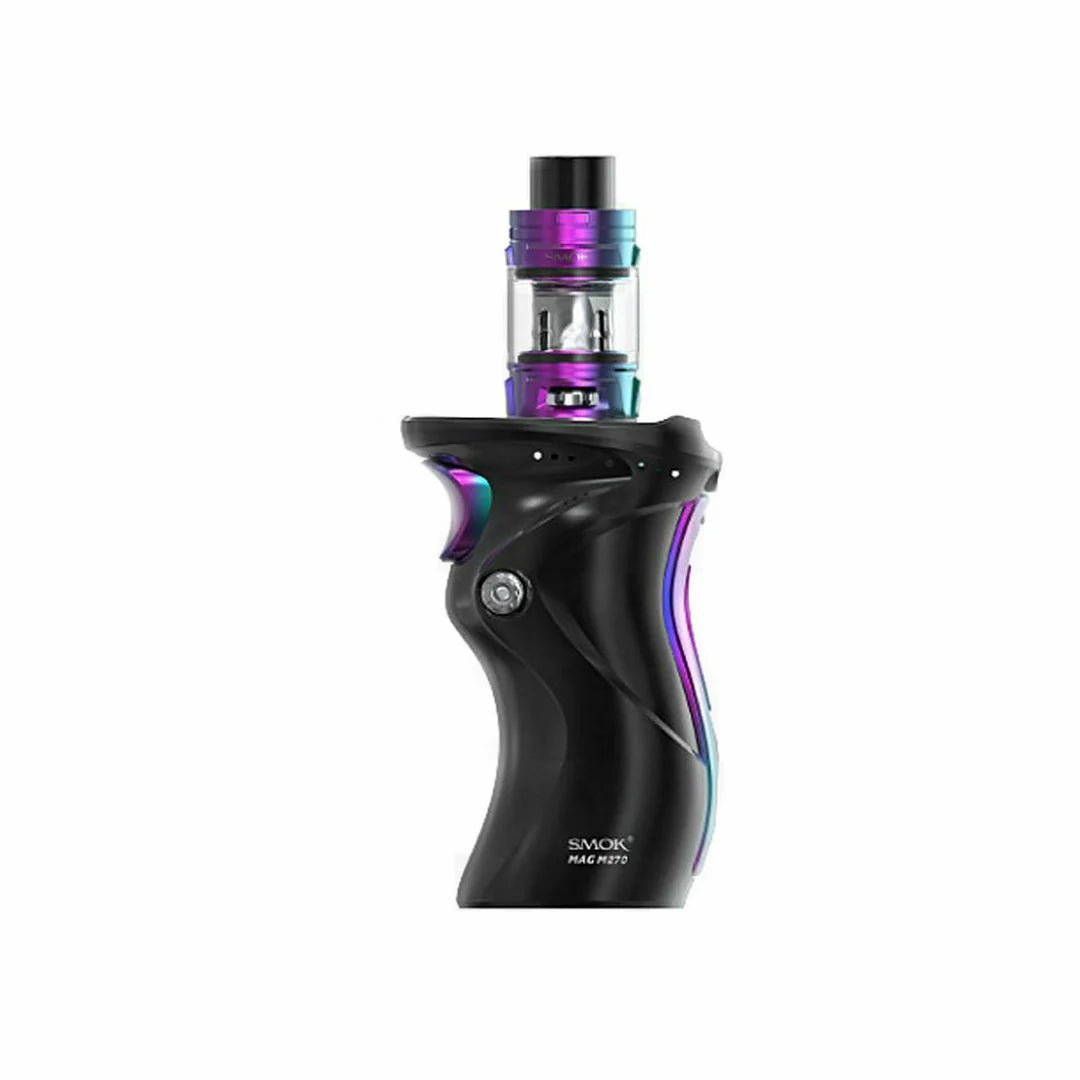

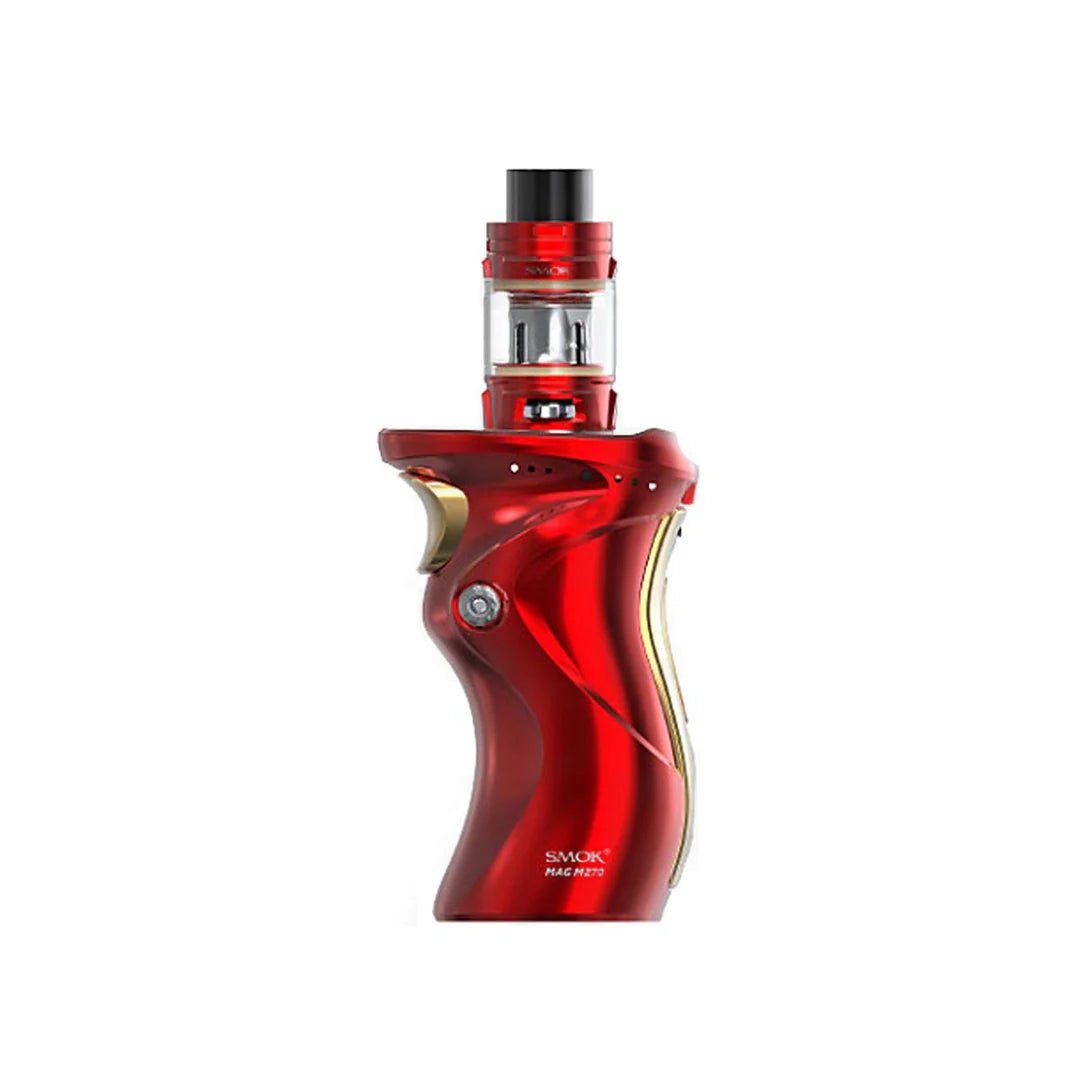

Colour Options: Four Striking Aesthetics

The Smok Mag V8 Kit is available in four distinct colourways, each engineered to appeal to different customer tastes. Stocking all four ensures you capture maximum market share.

Each variant uses high-grade, scratch-resistant paint processes to maintain its appearance through daily use.

How to Set Up and Use Your Smok Mag V8 Kit

Proper setup ensures both safety and optimal performance. Follow this expanded guide:

Step 1: Battery Installation

• Locate the bottom battery door latch. Slide it firmly in the direction of the arrow.

• Insert a compatible 21700, 20700, or 18650 (with adapter) positive terminal facing upward—toward the 510 connection plate.

• Close the door until a distinct click confirms secure locking. A loose door will cause power interruptions.

Step 2: Coil Priming (Crucial Step)

• Remove your chosen Mini V2 coil from its packaging.

• Apply 3–5 drops of e-liquid directly into each exposed cotton wicking port on the coil's sides.

• Also place 2 drops down the centre of the coil (onto the mesh or wire).

• Screw the primed coil into the tank's base. Hand-tighten firmly, but never use tools—over-tightening can deform O-rings.

Step 3: Filling the Tank

• Ensure the bottom airflow ring is fully closed (this prevents leakage during filling).

• Locate the sliding top cap. Push it sideways (away from the drip tip) until the fill port is exposed.

• Fill with e-liquid of your choice, keeping the centre chimney clear. Leave a small air gap—do not fill to the absolute brim.

• Slide the top cap back until it clicks shut.

Step 4: The Priming Wait (Most Overlooked Step)

• Screw the filled tank onto the mod.

• Wait 5–10 minutes before firing. This allows the cotton to become fully saturated. Failure to wait will burn the coil instantly.

• For thick (70% VG or higher) e-liquids, extend the wait to 15 minutes.

Step 5: Powering On and Adjusting Wattage

• Click the large fire button five times rapidly to turn the device on.

• Use the up (+) and down (-) buttons to set your starting wattage:

  • S1 Mesh Coil: Start at 40W. Increase by 5W increments until you reach your preferred flavour/heat balance (max 70W).

  • S2 Quad Coil: Start at 30W. Increase gradually to between 45–60W.

• Never exceed the coil's maximum rated wattage. Doing so will burn cotton and ruin the coil within seconds.

Step 6: Airflow Adjustment

• Rotate the bottom knurled ring while the tank is attached to the mod.

• Fully open: Maximum cloud production, cool vapour, loosest draw.

• Half open: Balanced flavour and vapour, slightly warmer.

• Nearly closed: Warmest, most concentrated flavour but reduced cloud volume.

Step 7: Vaping Technique

• Press the trigger-style fire button.

• Inhale directly into your lungs (direct-to-lung) rather than pulling into your mouth first.

• Release the fire button approximately half a second before finishing your inhale to clear residual vapour from the chamber and prevent condensation build-up.

Maintenance and Troubleshooting

Daily Care

• Remove the tank and wipe the 510 connection weekly with a dry cotton swab.

• Rinse the tank in warm water every 2–3 tankfuls (remove the coil first).

• Replace coils every 1–2 weeks, depending on e-liquid sweetness and usage frequency.

Common Issues and Fixes

What's in the Box (Full Contents)

Upon opening your Smok Mag V8 Kit, you will find:

1. Smok Mag M270 Mod (battery not included)

2. Smok TFV-Mini V2 Sub-Ohm Tank (pre-installed with glass tube)

3. Mini V2 S1 Mesh 0.15Ω Coil (Best 60–70W)

4. Mini V2 S2 Quad 0.15Ω Coil (Best 45–60W)

5. 18650 Battery Adapter (plastic sleeve)

6. Micro USB Charging Cable (approx. 30cm)

7. User Manual (multiple languages)

8. Spare O-rings and glass tube seal (packaged inside the box insert)

Batteries are sold separately. No charger is included.

Frequently Asked Questions (FAQs)

Does the kit include a battery?

No. The Smok Mag V8 Kit requires one external 21700, 20700, or 18650 battery. A plastic 18650 adapter is included, but the battery itself must be purchased separately. Vaping Supplier offers a full range of compatible high-drain batteries.

Which coils are compatible?

Only Smok Mini V2 series coils. The tank is not compatible with:

• Smok Baby coils (V8 Baby, Baby Mesh, etc.)

• Smok TFV8 coils (original or Big Baby)

• Any third-party brand (Vaporesso GT, Eleaf HW, etc.)

Is this kit suitable for beginners?

Yes, with a caveat. Beginners who understand direct-to-lung vaping will find the Mag V8 straightforward. However, absolute beginners coming from mouth-to-lung pod systems may find the airflow too loose and vapour production excessive. We recommend this kit for vapers who have already tried sub-ohm vaping or who are willing to learn DTL technique.

Can the TFV-Mini V2 tank be used on other mods?

Yes. The tank uses a standard 510 connection and will function on any mod that supports resistances down to 0.15Ω. However, the tank's 70W optimal range means the mod should be capable of at least 80W for headroom.

Is the display configurable?

The top-mounted screen shows wattage, resistance, battery level, and puff count. Unlike more advanced chipsets, the Mag V8 does not offer custom curves or colour themes—it prioritises simplicity and readability.

Can I use temperature control?

Yes. The Mag M270 mod supports temperature control for Ni200, Titanium, and SS316L wires. However, the included Mini V2 coils are Kanthal-based and not suitable for TC mode. You must purchase compatible TC coils separately.

Is this product available for bulk wholesale orders?

Absolutely. Vaping Supplier offers tiered trade pricing on bulk orders of the Smok Mag V8 Kit. Mix and match colourways, request case quantities, and enjoy fast, discreet shipping. Contact our wholesale team directly for volume discounts.

Why Stock the Smok Mag V8 Kit Through Vaping Supplier?

As the exclusive distributor of this kit at competitive trade prices, Vaping Supplier offers retailers:

• Authentic, factory-sealed products – no grey market or counterfeit stock.

• Competitive bulk pricing – margin-friendly rates that allow flexible retail pricing.

• Fast fulfilment – most orders ship within 24 hours.

• Dedicated support – coil compatibility, warranty, and technical queries answered promptly.

The Smok Mag V8 Kit is more than another sub-ohm offering—it is a genuine ergonomic innovation in a market full of identical rectangles. Give your customers something that feels as good as it performs.

Order the Smok Mag V8 Kit wholesale today from Vaping Supplier.
